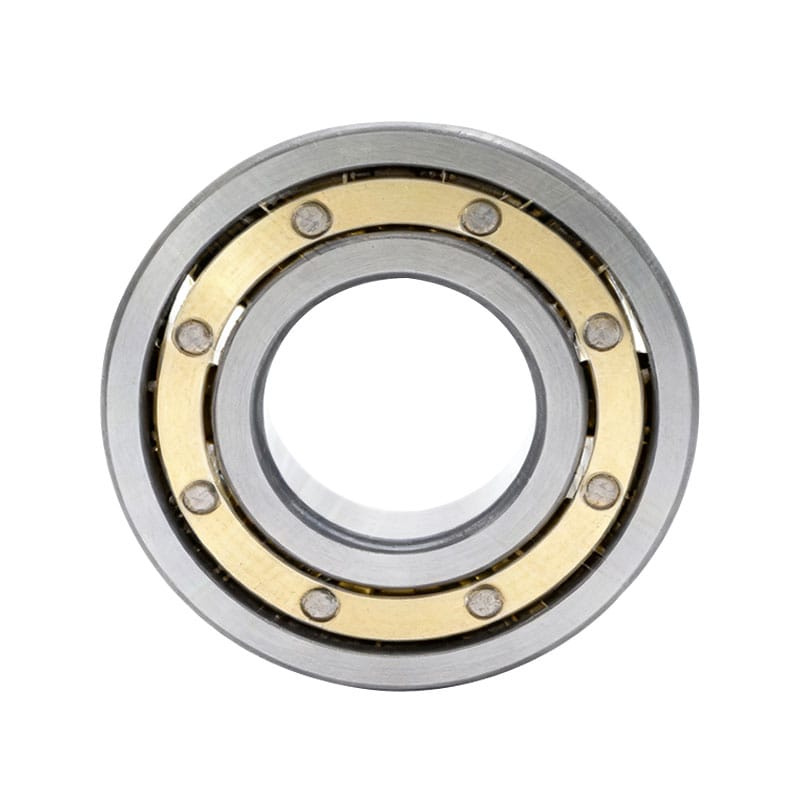

Deep Groove Ball Bearings（Copper Protection Series）

Built on precision manufacturing and strict quality control, we deliver reliable, stable, and high-performance bearing solutions to customers worldwide.

Deep Groove Ball Bearings（Copper Protection Series）

Deep Groove Ball Bearings（Copper Protection Series）

High temperature resistance and good thermal conductivity, capable of withstanding temperatures above 150℃.Wear-resistant and self-lubricating, resulting in a longer service life.High rigidity and strong load-bearing capacity, suitable for high-speed and heavy-duty applications.Corrosion resistant, exhibiting good stability in harsh environments such as humid conditions.

Deep Groove Ball Bearings（Copper Protection Series）

Deep Groove Ball Bearings（Copper Protection Series）

High temperature resistance and good thermal conductivity, capable of withstanding temperatures above 150℃.Wear-resistant and self-lubricating, resulting in a longer service life.High rigidity and strong load-bearing capacity, suitable for high-speed and heavy-duty applications.Corrosion resistant, exhibiting good stability in harsh environments such as humid conditions.

Description

Bearing code	Basic dimensions (mm)				Basic rated load (kN)		Limiting speed (r/min)		Installation related dimensions (mm)			Weight (Kg)
Bearing code	d	D	B	rs min	Cr	Cor	Grease lubrication	Oil lubrication	Ds(min)	dh(max)	R(max)	Weight (Kg)
62/33	33	72	17	1.1	22.5	13.6	9100	11000	38	66.5	1	0.308
6007	35	62	14	1	16.3	10.5	10000	13000	40	57	l	0.148
6207	35	72	17	1.1	25.7	15.3	9000	11000	41.5	65.5	1	0.284
6307	35	80	21	1.5	35.5	19.2	8500	10000	43	72	1.5	0.456
6307TN1	35	80	21	1.5	35.5	19.2	8500	10000	43	72	1.5	0.443
6407	35	100	25	1.5	55.5	29.5	7000	8500	43	92	1.5	0.919
6008/C3	40	68	15	1	21.8	11.6	9500	12000	44.6	63.4	1	0.191
6208	40	80	18	1.1	31	17.9	8500	10000	46.5	73.5	1	0.361
6208/HAP6	40	80	18	1.1	31	17.9	8500	10000	46.5	73.5	1	0.361
6208/P5YB2	40	80	18	1.1	31	17.9	8500	10000	46.5	73.5	1	0.361
370208	40	80	18	1.1	31	17.9	8500	10000	46.5	73.5	1	0.362
6308/P5YB2	40	90	23	1.5	41	24	7500	9000	48	82	1.5	0.642
6308	40	90	23	1.5	41	24	7500	9000	48	82	1.5	0.642
6308TN1	40	90	23	1.5	41	24	7500	9000	48	82	1.5	0.611
6308/HA	40	90	23	1.5	41	24	7500	9000	48	82	1.5	0.642
6308/C9YA4	40	90	23	1.5	41	24	7500	9000	48	82	1.5	0.642
6408	40	110	27	2	67.5	36	6700	8000	49	101	2	1.2
62/41/HAP53	41	80	17	1.1	31	19	8500	10000	46.5	73.5	l	0.342
16009	45	75	10	0.6	14.9	11.4	9000	11000	49	71	0.6	0.165
6009	45	75	16	1	20	14	9000	11000	50	70	1	0.246
6209	45	85	19	1.1	31.5	20.4	7500	9000	51.5	78.5	1	0.428
6209TN1	45	85	19	1.1	31.5	20.4	7500	9000	51.5	78.5	1	0.416
6209K	45	85	19	1.1	31.5	20.4	7500	9000	51.5	78.5	1	0.419
6209MA	45	85	19	1.1	31.5	20.4	7500	9000	51.5	78.5	1	0.492
209	45	85	19	1.1	42.5	32	5300	7500	51.5	78.5	1	0.492
6309/YB5	45	100	25	1.5	52.5	30	6700	8000	53	92	1.5	0.85
6309/HAC3V2YA7	45	100	25	1.5	52.5	30	6700	8000	53	92	1.5	0.807
309U2	45	100	25	1.5	52.6	30.1	6700	8000	53	92	1.5	0.85
309HU	45	100	25	1.5	52.7	30.2	6700	8000	53	92	1.5	1.05
6309A	45	100	25	1.5	52.5	30	6700	8000	53	92	1.5	0.859
6309	45	100	25	1.5	52.5	30	6700	8000	53	92	1.5	0.85
6309TN1	45	100	25	1.5	52.5	30	6700	8000	53	92	1.5	0.811
6409	45	120	29	2	78	46	6000	7000	54	111	2	1.69
61910	50	72	12	0.6	13.5	11	8500	100000	53.2	68.8	0.6	0.134
16010	50	80	10	0.6	15.4	12.3	8500	100000	54	76	0.6	0.179
6010	50	80	16	1	22	16.3	6500	10000	55	75	1	0.248
6210/HA	50	90	20	1.1	35	23.2	7100	8500	56.5	83.5	1	0.504
6210/C9YA6	50	90	20	1.1	35	23.2	7100	8500	56.5	83.5	l	0.474
6210	50	90	20	1.1	35	23.2	7100	8500	56.5	83.5	1	0.504
6310	50	110	27	2	62	38	6300	7500	59	101	2	1.07
6310A	50	110	27	2	62	38	6300	7500	59	101	2	1.12
6310TN1	50	110	27	2	62	38	6300	7500	59	101	2	0.998
6310TN11	50	110	27	2	62	38	6300	7500	59	101	2	0.998
810	50	111	27	2.3	62	38	6300	7500	61	101	2	1.1
6410	50	130	31	2.1	92	55	5300	6300	61	119	2	1.85
61811	55	72	9	0.3	8.8	8.1	8500	10000	57	70	0.3	0.0845
700011l	55	90	11	0.6	21.3	14.2	7500	9000	59	85	0.6	0.307
6011	55	90	18	1.1	31.5	18.4	7500	9000	61	84	1	0.384
6211K	55	100	21	1.5	43.5	28.8	6300	7500	63	92	1.5	0.62
6211	55	100	21	1.5	43.5	28.8	6300	7500	63	92	1.5	0.605
6311	55	120	29	2	71.5	45	5600	6700	64	111	2	1.39
6311TN1	55	120	29	2	71.5	45	5600	6700	64	111	2	1.31
6411	55	140	33	2.1	100	62	5000	6000	66	129	2	2.31
61912	60	85	13	1	17	15.1	7500	9000	64.5	80.5	1	0.201
16012	60	95	11	0.6	19.1	16.5	6700	8000	64	91	0.6	0.27
6012	60	95	18	1.1	30	23	6700	8000	66.5	88.5	1	0.426
6012M	60	95	18	1.1	30	23	6700	8000	66.5	88.5	l	0.497
6212	60	110	22	1.5	53	33	5600	7100	68	102	1.5	0.793
212	60	110	22	1.5	53	33	5600	7100	68	102	1.5	0.793
212U	60	110	22	1.5	53	33	5600	7100	68	102	1.5	0.793
212U1	60	110	22	1.5	53	33	5600	7100	68	102	1.5	0.793
6212/YA5	60	110	22	1.5	53	33	5600	7100	68	102	1.5	0.772
6212K	60	110	22	1.5	53	33	5600	7100	68	102	1.5	0.781
6312A	60	110	31	2.1	82	48.5	5300	6300	71	119	2	1.75
6312	60	130	31	2.1	82	48.5	5300	6300	71	119	2	1.71
6312Q1	60	130	31	2.1	82	48.5	5000	6000	71	119	2	2.07
6312TN1	60	130	31	2.1	82	48.5	5000	6000	71	119	2	1.64
6412	60	150	35	2.1	109	70	4800	5600	71	139	2	2.78
61913	65	90	13	1	19.5	17	6700	8000	70	85	l	0.203
6013	65	100	18	1.1	32	25	6300	7500	71.5	93.5	1	0.428
6013M	65	100	18	1.1	32	25	6300	7500	71.5	93.5	1	0.553
6213	65	120	23	1.5	56	41	5300	6300	73	112	1.5	0.973
6213MA	65	120	23	1.5	56	41	5300	6300	73	112	1.5	1.23
6213A	65	120	23	1.5	56	41	5300	6300	73	112	1.5	1
213G	65	120	23	1.5	56	41	5300	6300	73	112	1.5	1.01
180213	65	120	23	1.5	56	41	5300	6300	73	112	1.5	1.06
6313	65	140	33	2.1	92.5	59.5	4800	5600	76	129	2	2.1
6313A	65	140	33	2.1	92.5	59.5	4800	5600	76	129	2	1.85
6313/YA6	65	140	33	2.5	92.5	59.5	4800	5600	76	129	2.5	2.09
6313M	65	140	33	2.1	92.5	59.5	5600	4800	76	129	2	2.1
6413	65	160	37	2.1	118	78.5	4500	6300	76	149	2	3.25
6014	70	110	20	1.1	38	31	6000	7000	76.5	103.5	1	0.62
6014M	70	110	20	1.1	38	31	6000	7000	76.5	103.5	1	0.757
6214	70	125	24	1.5	60.5	46	5000	6000	78	117	1.5	1.34
6214A	70	125	24	1.5	60.5	46	5000	6000	78	117	1.5	1.12
6314A	70	150	35	2.1	104	68	4500	5300	81	139	2	2.6
6314/P6CMV2	70	150	35	2.1	104	68	4500	5300	81	139	2	2.55
314U1	70	150	35	2.1	104	68	4500	5300	81	139	2	2.55
6314	70	150	35	2.1	104	68	4500	5300	81	139	2	2.55
6314/C9	70	150	35	2.1	104	68	4500	5300	81	139	2	2.55
6314/YA6	70	150	35	2.1	104	68	4500	5300	81	139	2	2.55
6314TN1	70	150	35	2.1	104	68	4500	5300	81	139	2	2.46
6414	70	180	42	3	143	103	3800	4500	83	167	2.5	4.73
60/72	72	110	20	1.1	38	31	4500	5300	77	105	1	0.584
6015	75	115	20	1.1	38	31	5600	6700	81.5	108.5	1	0.63
6015M	75	115	20	1.1	38	31	5600	6700	81.5	108.5	1	0.804
16015	75	115	13	0.6	22.1	22	5600	6700	81.5	108.5	1	0.583
6215	75	130	25	1.5	66	50	4800	5600	83	122	1.5	1.16
6215A	75	130	25	1.5	66	50	4800	5600	83	122	1.5	1.21
6215M	75	130	25	1.5	66	50	4800	5600	83	122	1.5	1.45
6215K	75	130	25	1.5	66	50	4800	5600	83	122	1.5	1.16
6315	75	160	37	2.1	113	116	4300	5000	86	149	2	3.1
6315A	75	160	37	2.1	113	116	4300	5000	86	149	2	3.03
315U1	75	160	37	2.1	113	116	4300	5000	86	149	2	3.02
6315/YA8	75	160	37	2.1	113	116	4300	5000	86	149	2	3.03
6315M	75	160	37	2.1	113	116	4300	5000	86	149	2	3.77
6415	75	190	45	3	153	114	3600	4300	88	177	2.5	5.57
61916	80	110	16	1	27.5	25	5600	6700	85	105	1	0.35
6016	80	125	22	1.1	47.5	40	5300	6300	86.5	118.5	l	0.86
16016	80	125	14	0.6	32	30	5300	6300	84	121	0.6	0.599
6016M	80	125	22	1.1	47.5	40	5300	6300	86.5	118.5	1	1.08
6216A	80	140	26	2	71.5	54.5	4500	5300	89	131	2	1.47
6216	80	140	26	2	71.5	54.5	4500	5300	89	131	2	1.43
6316	80	170	39	2.1	119	86.5	3800	4500	91	159	2	3.64
6316M/HQ1	80	170	39	2.1	119	86.5	3800	4500	91	159	2	4.54
6316A	80	170	39	2.1	119	86.5	3800	4500	91	159	2	3.68
6416	80	200	48	3	164	125	3400	4000	93	187	2.5	6.63
61917	85	120	18	1.1	30.3	27	5300	6300	91	114	1	0.557
16017	85	130	14	0.6	31.5	30	5000	6000	89	126	0.6	0.636
6017	85	130	22	1.1	47.5	40	5000	6000	91.5	123.5	1	0.935
6017M	85	130	22	1.1	47.5	40	5000	6000	91.5	123.5	1	1.12
6217	85	150	28	2	83	64	4300	5000	94	141	2	1.8
6217K	85	150	28	2	83	64	4300	5000	94	141	2	1.81
6217A	85	150	28	2	83	64	4300	5000	94	141	2	1.85
6217/HA	85	150	28	2	83	64	4300	5000	94	141	2	1.8
6217M	85	150	28	2	83	64	4300	5000	94	141	2	1.91
6317	85	180	41	3	102	96.5	3800	4500	98	167	25	4.33
6317/P6CMV2	85	180	41	3	102	96.5	3800	4500	98	167	2.5	4.33
6317M	85	180	41	3	102	96.5	3800	4500	98	167	2.5	4.97
317U1	85	180	41	3	102	96.5	3800	4500	98	167	2.5	4.33
6417	85	210	52	4	165	136	3200	3800	101	194	3	8.12
61918	90	125	18	1.1	33	31.5	5000	6000	96.5	118.5	1	0.572
61918M	90	125	18	1.1	33	31.5	5000	6000	96.5	118.5	1	0.68
61918/YA6	90	125	18	0.6	33	31.5	5000	6000	96.5	118.5	0.5	0.572
6018	90	140	24	1.5	58.5	50	4800	5600	98	132	1.5	1.16
16018M	90	140	16	1	58.5	50	4800	5600	95	135	1	0.941
6018M	90	140	24	1.5	58.5	50	4800	5600	98	132	1.5	1.39
6218	90	160	30	2	95.5	72	3800	4500	99	151	2	2.19
218U1	90	160	30	2	95.5	72	3800	4500	99	151	2	2.19
6318	90	190	43	3	144	108	3400	4000	103	177	2.5	4.97
6318/CM	90	190	43	3	144	108	3400	4000	103	177	2.5	4.97
6318M/C4	90	190	43	3	144	108	3400	4000	103	177	2.5	6.37
6318/YA6	90	190	43	5.5	144	108	3400	4000	103	177	2.5	4.97
6418	90	225	54	4	193	158	3000	3600	106	209	3	9.47
61819	95	120	13	1	19.3	20.4	5000	6000	99.6	115	1	0.288
61919	95	130	18	1.1	33.8	33	4800	5600	101	124	1	0.61
16019	95	145	16	1	40.5	39	4500	5300	100	140	1	0.884
6019	95	145	24	1.5	78.5	54	4500	5300	103	137	1.5	1.14
6219	95	170	32	2.1	108	81.5	3600	4300	106	159	2	2.61
6219M	95	170	32	2.1	108	81.5	3600	4300	106	159	2	3.26
6319	95	200	45	3	152	122	3200	3800	108	187	2.5	5.65
6319/CM	95	200	45	3	152	122	3200	3800	108	187	2.5	5.58
6319A	95	200	45	3	152	122	3200	3800	108	187	2.5	5.84
6319F1/HQ1	95	200	45	3	152	122	3200	3800	108	187	2.5	6.93
6319M/HQ1	95	200	45	3	152	122	3200	3800	108	187	2.5	7.11
6419M	95	240	55	4	204	171	3400	3600	108	215	2.5	13.4
61820	100	125	13	1	19.6	21.2	4800	5600	105	120	1	0.326
61920M	100	140	20	1.1	34.5	35	4500	5300	106.5	133.5	1	0.96
61920	100	140	20	1.1	34.5	35	4500	5300	106.5	133.5	1	0.85
16020	100	150	16	1	43.6	44	4300	5000	108	142	1	0.916
6020	100	150	24	1.5	57.5	56.5	4300	5000	108	142	1.5	1.17
6020M	100	150	24	1.5	57.5	56.5	4300	5000	108	142	1.5	1.4
720	100	180	28	1.8	116	92	3400	4000	111.5	171.5	1.8	2.7
6220	100	180	34	2.1	122	93	3400	4000	111	169	2	3.2
6320	100	215	47	3	173	141	2800	3600	113	202	2.5	7.01
6320A	100	215	47	3	173	141	2800	3600	113	202	2.5	7.1
6320M	100	215	47	3	173	141	2800	3600	113	202	2.5	8.94
6320MA	100	215	47	3	173	141	2800	3600	113	202	2.5	9.28
6320/YA8	100	215	47	3	173	141	2800	3600	113	202	2.5	7.11
6420	100	250	58	4	224	195	2600	3400	116	234	3	12.8
6420M	100	250	58	4	224	195	2600	3400	116	234	3	15.4
61821M	105	130	13	1	19.5	21	4500	5300	110	125	1	0.362
6021	105	160	26	2	73	65.5	4000	4800	114	151	2	1.62
6021A	105	160	26	2	73	66.5	4000	4800	114	151	2	1.65
6021M	105	160	26	2	73	65.5	4000	4800	114	151	2	1.92
721	105	180	22	1.1	68	65	4200	5000	113.5	173.5	1	2.61
6221	105	190	36	2.1	132	105	3200	3800	116	179	2	3.66
6321	105	225	49	3	240	154	2800	3400	118	212	2.5	7.84
61822	110	140	16	1	24.8	28	4300	5000	115	135	1	0.505
61922	110	150	20	1.1	43.5	44.5	4000	4800	116.5	143.5	1	0.888
61922M	110	150	20	1.1	43.5	44.5	4000	4800	116.5	143.5	1	1.01
16022	110	170	19	1	57.2	57	3800	4500	115	165	1	1.48
6022	110	170	28	2	82	73.5	3800	4500	119	161	2	2.09
6022M	110	170	28	2	82	73.5	3800	4500	119	161	2	2.72
6022M/YB5	110	170	28	2	82	73.5	3800	4500	119	161	2	2.71
6222	110	200	38	2.1	133	106	2800	3400	121	189	2	4.29
6222M	110	200	38	2.1	133	106	2800	3400	121	189	2	5.46
6322	110	240	50	3	205	176	2400	3000	123	227	2.5	9.49
6322A	110	240	50	3	205	176	2400	3000	123	227	2.5	9.72
6322M	110	240	50	3	205	176	2400	3000	123	227	2.5	11.8
6422	110	280	65	4	265	226	2200	3000	126	264	3	18.3
6422M	110	280	65	4	265	226	2200	3000	126	264	3	19
61824	120	150	16	1	24.7	28	3800	4500	125	145	1	0.568
61924	120	165	22	1.1	53	54	3600	4300	126.5	158.5	1	1.21
61924M	120	165	22	1.1	53	540	3600	4300	126.5	158.5	1	1.54
16024	120	180	19	1	60.5	64	3400	4000	125	175	1	1.64
16024M	120	180	19	1	60.5	64	3400	4000	125	175	1	1.82
6024	120	180	28	2	85.5	80	3400	4000	129	171	2	2.21
6024A	120	180	28	2	85.5	80	3400	4000	129	171	2	2.02
6024M	120	180	28	2	85.5	80	3400	4000	129	171	2	2.68
6224	120	215	40	2.1	156	131	2800	3400	131	204	2	5.26
6224M	120	215	40	2.1	156	131	2800	3400	131	204	2	6.33
6324	120	260	55	3	228	207	2200	2800	133	247	2.5	12.2
6324A	120	260	55	3	228	207	2200	2800	133	247	2.5	12.5
6324M/C3	120	260	55	3	228	207	2200	2800	133	247	2.5	13.7
6324F1/HQ1	120	260	55	3	228	207	2200	2800	133	247	2.5	13.4
619/121X4M	120.65	165.1	22.225	1.1	53.3	54	3600	4300	126.5	158.5	1	1.48
619/121M	121	165	22	1.1	53.3	54	3600	4300	126.5	158.5	1	1.48
925	127	228.6	34.925	2	148	133	2200	2800	136	219.6	2	7
61826MA	130	165	18	1.1	35.8	38	3600	4300	136	159	1	0.898
61926M	130	180	24	1.5	65	67	3400	4000	138	172	1.5	1.92
61926	130	180	24	1.5	65	67	3400	4000	138	172	1.5	1.56
726	130	190	19	0.7	56	60	3200	3800	134	186	0.7	1.7
726H	130	190	19	0.7	56	60	3200	3800	134	186	0.7	1.91
16026M	130	200	22	1.1	79.5	81.5	3200	3800	136.5	193.5	1	2.32
16026	130	200	22	1.1	79.5	81.5	3200	3800	136.5	193.5	1	2.19
6026	130	200	33	2	101	94	3200	3800	139	191	2	3.29
6026M	130	200	33	2	101	94	3200	3800	139	191	2	3.96
6026MA	130	200	33	2	101	94	3200	3800	139	191	2	3.98
6226	130	230	40	3	165	148	2600	3200	143	217	2.5	6.04
226HU1	130	230	40	3	165	148	2600	3200	143	217	2.5	7.51
226U1	130	230	40	3	165	148	2600	3200	143	217	2.5	6.16
6226MA	130	230	40	3	165	148	2600	3200	143	217	2.5	7.91
6326	130	280	58	4	250	239	2200	2600	146	264	3	14.7
6326A	130	280	58	4	250	239	2200	2600	146	264	3	14.9
6326Fl/HQ1	130	280	58	4	250	239	2200	2600	146	264	3	16.7
6326M	130	280	58	4	250	239	2200	2600	146	264	3	18.3
61828M	140	175	18	1.1	37	40	3400	4000	146.5	168.5	1	0.93
61828MA	140	175	18	1.1	37	40	3400	4000	146.5	168.5	1	0.93
61928M	140	190	24	1.5	64	67.5	3200	3800	148	182	1.5	2.11
16028M	140	210	22	1.1	80.5	86.5	3000	3600	146.5	203.5	1	3.08
6028	140	210	33	2	106	102	3000	3600	146.5	201	2	3.25
6028/C9	140	210	33	2	106	102	3000	3600	149	201	2	3.24
6028/C9YB2	140	210	33	2	106	102	3000	3600	149	201	2	3.25
6028M	140	210	33	2	106	102	3000	3600	149	201	2	3.89
6228	140	250	42	3	166	150	2400	3000	153	237	2.5	7.41
6228M	140	250	42	3	166	150	2400	3000	153	237	2.5	9.44
6328	140	300	62	4	253	246	2000	2600	156	284	3	18.5
6328M	140	300	62	4	253	246	2000	2600	156	284	3	21.3
928T3	144	185	22	0.7	62.5	70	3600	4000	148	181	0.7	1.07
930T3	149	201	33	0.7	105	102	3000	3600	153	197	0.7	1.79
61830M	150	190	20	1.1	46.4	53	3000	3600	156	184	1	1.36
61930M	150	210	28	2	84.5	90	2800	3400	159	201	2	3.04
16030	150	225	24	1.1	89	96	2600	3200	156.5	218.5	1	3.14
16030M	150	225	24	1.1	91	98.5	2600	3200	156.5	218.5	1	3.63
6030	150	225	35	2.1	131	125	2600	3200	161	214	2	4.14
6030/C9	150	225	35	2.1	131	125	2600	3200	161	214	2	4.14
6030M	150	225	35	2.1	131	125	2600	3200	161	214	2	5.01
6230	150	270	45	3	175	169	2000	2600	163	257	2.5	9.76
6230M	150	270	45	3	175	169	2000	2600	163	257	2.5	11.8
6330	150	320	65	4	277	280	1800	2200	166	304	3	21.4
IS-6330	150	320	65	4	360	280	1800	2200	166	304	3	22.2
6330M	150	320	65	4	277	280	1800	2200	166	304	3	26
61832M	160	200	20	1.1	49.5	59	2600	3200	168	192	1.1	1.32
61932M	160	220	28	2	87.5	90	2600	3200	169	211	2	3.28
16032	160	240	25	1.5	94	104	2400	3000	168	232	1.5	3.95
16032M	160	240	25	1.5	95	104	2400	3000	168	232	1.5	4.61
6032	160	240	38	2.1	143	138	2400	3000	171	229	2	5.63
6032/C9	160	240	38	2.1	143	138	2400	3000	171	229	2	5.34
6032M	160	240	38	2.1	143	138	2400	3000	171	229	2	6.41
6232	160	290	48	3	210	210	1900	2400	173	277	2.5	12.3
6232M	160	290	48	3	210	210	1900	2400	173	277	2.5	14.4
6332M	160	340	68	4	310	325	1800	2200	176	324	3	31.3
733	165	250.5	35	2.5	147	143	2200	2600	177	238	2.5	6.44
61834M	170	215	22	1.1	65	61	2600	3200	176.5	208.5	1	1.87
61834MA	170	215	22	1.1	65	61	2600	3200	176.5	208.5	l	1.88
61934M	170	230	28	2	115	100	2400	3000	179	221	2	5.19
16034	170	260	28	1.5	119	128	2200	2800	178	252	1.5	5.01
16034M	170	260	28	1.5	119	129	2200	2800	178	252	1.5	5.83
6034M	170	260	42	2.1	170	171	2200	2800	181	249	2	8.23
6034MA	170	260	42	2.1	170	171	2200	2800	181	249	2	8.25
6034	170	260	42	2.1	170	171	2200	2800	181	249	2	6.78
6034Q	170	260	42	2.1	170	171	2200	2800	181	249	2	7.94
6234	170	310	52	4	227	240	1900	2400	186	294	3	15.2
6234M	170	310	52	4	227	240	1900	2400	186	294	3	18.4
6234/YA5	170	310	52	4	242	256	1900	2400	186	294	3	15.2
6334	170	360	72	4	350	380	1700	2000	186	344	3	30.9
6334M	170	360	72	4	350	380	1700	2000	186	344	3	34.9
61836M	180	225	22	1.1	61.8	65	2400	3000	186	219	1	1.97
61836MA	180	225	22	1.1	61.8	65	2400	3000	186	219	1	2.07
61936M	180	250	33	2	127	137	2200	2800	189	241	2	5.27
61936XIM	180	259.5	33	2	127	137	2200	2800	189	241	2	6.05
63936XIM	180	259.5	52	2	127	137	2200	2800	189	250.5	2	8.87
16036M	180	280	31	2	135	145	2100	2700	189	270	2	6.58
6036	180	280	46	2.1	195	202	2200	2600	191	269	2	8.83
6036M	180	280	46	2.1	195	202	2200	2600	191	269	2	10.7
6236	180	320	52	4	256	279	1800	2200	196	304	3	15.4
6236M	180	320	52	4	256	279	1800	2600	196	304	3	17.8
6236MA	180	320	52	4	256	279	1800	2600	196	304	3	17.8
6336M	180	380	75	4	340	400	1700	1900	198	363	3	49.5
61838M	190	240	24	1.5	72.5	83.5	2200	2800	198	232	1.5	2.38
61938M	190	260	33	2	127	138	2200	2800	199	251	2	5.85
61938XIM	190	269.5	33	2	127	138	2200	2800	199	260.5	2	6.87
16038	190	290	31	2	140	155	2000	2600	199	281	2	6.88
16038M	190	290	31	2	140	155	2000	2600	199	281	2	8.11
6038M	190	290	46	2.1	193.5	204	2000	2600	201	279	2	11.1
6038	190	290	46	2.1	193.5	204	2000	2600	201	279	2	9.58
6238	190	340	55	4	265	320	1700	2000	206	324	3	18.9
6238M	190	340	55	4	265	320	1700	2000	206	324	3	23.2
6338M	190	400	78	5	360	425	1600	1900	210	382	4	50
61840MA	200	250	24	1.5	72.3	84	2200	2800	207	243	1.5	2.68
61940MA	200	280	38	2.1	125	144	2000	2600	210	270	2	7.63
61940XIMA-1	200	279.5	38	2.1	125	144	2000	2600	210	270	2	7.59
61940XIMA	200	289.5	38	2.1	125	144	2000	2600	210	270	2	8.89
16040M	200	310	34	2	160	179	1900	2400	209	301	2	10.3
6040M	200	310	51	2.1	222	245	1900	2400	211	299	2	14.3
6040	200	310	51	2.1	222	245	1900	2400	211	299	2	11.7
6240	200	360	58	4	288	335	1700	2000	216	344	3	22.6
6240M	200	360	58	4	288	335	1700	2000	216	344	3	24.4
61844M	220	270	24	1.5	74.1	89	1900	2400	227	263	1.5	3.21
61944M	220	300	38	2.1	175	162	1900	2400	231	289	2	7.96
61944XIM	220	309.5	38	2.1	175	162	1900	2400	231	298.5	2	9.3
16044	220	340	37	2.1	181	215	1800	2200	233	327	2	11.7
6044	220	340	56	3	245	293	1800	2200	233	327	2.5	15.6
6044M	220	340	56	3	245	293	1800	2200	233	327	2.5	18.8
6244	220	400	65	4	297	365	1500	1800	236	384	3	31.2
6344	220	460	88	5	403	520	1300	1600	240	440	4	71.4
6344/C9	220	460	88	5	403	520	1300	1600	240	440	4	71.4
6646M	230	329.5	40	2.1	191	227	1600	2000	241	319	2.1	10.4
61848M	240	300	28	2	103	116	1800	2200	249	291	2	4.78
61948M	240	320	38	2.1	155	186	1800	2200	251	309	2	8.1
16048M	240	360	37	2.1	188	228	1700	2000	253	347	2	15.8
6048M	240	360	56	3	255	315	1700	2000	253	347	2.5	20.7
6048X1M	240	359.5	56	3	255	315	1700	2000	253	346.5	2.5	20.7
6248	240	440	72	4	360	470	1300	1600	256	424	3	51.8
6348F1	240	500	95	5	442	595	1100	1400	260	480	4	95
61852M	260	320	28	2	122	128	1700	2000	269	311	2	4.85
61952M	260	360	46	2.1	212	269	1600	1900	276	349	2	14.4
61952MA	260	360	46	2.1	212	269	1600	1900	271	349	2	14.4
61952XIM	260	369.5	46	2.1	212	269	1600	1900	276	349	2	16.3
752	260	370	46	2.1	212	269	1600	1900	271	359	2	16.5
62952X3M	260	369.5	68	2.1	227	288	1600	1900	271	358.5	2	22.9
62952XIM-1	260	369.5	60	2.1	227	288	1600	1900	271	358.5	2	20.3
6052X1F3	260	399.5	65	4	294	375	1500	1800	276	384	3	28.5
16052M	260	400	44	3	230	300	1500	1800	272	388	2.5	22
6052M	260	400	65	4	294	375	1500	1800	276	384	3	28.8
6052M/YA3	260	400	65	4	294	375	1500	1800	276	384	3	27
6252/C3	260	480	80	5	430	592	1100	1400	280	460	4	68.8
6252F1	260	480	80	5	430	592	1100	1400	280	460	4	67.6
6352F1	260	540	102	6	501	710	1000	1300	286	514	5	120
61856M	280	350	33	2	131	188	1600	1900	289	341	2	7.17
61956M	280	380	46	2.1	215	282	1500	1800	291	369	2	15.6
61956XIM	280	389.5	46	4	215	282	1500	1800	291	379	2	17.5
16056	280	420	44	3	235	330	1300	1600	292	407	2.5	22.5
61956XIM-1	280	390	46	4	215	282	1500	1800	291	379	2	17.6
6056	280	420	65	4	305	405	1400	1700	296	404	3	32.2
6256	280	500	80	5	410	600	1000	1300	300	480	4	72
6356	280	580	108	6	560	840	1000	1200	305	553	5	141
61860M	300	380	38	2.1	163	206	1400	1700	309	371	2	10.4
61960X1	300	419.5	56	3	267	370	1400	1700	313	406.5	2.5	20.6
61960	300	420	56	3	267	370	1300	1600	313	407	2.5	20.7
16060/HA	300	460	50	4	289	400	1200	1500	316	444	3	33.1
6060	300	460	74	4	340	480	1200	1500	316	444	3	48.4
6260	300	540	85	5	450	665	950	1200	320	520	4	88
61864M	320	400	38	2.1	164	220	1300	1600	331	389	2	11.4
61864F3	320	400	38	2.1	164	220	1300	1600	331	389	2	11.1
864	320	412	38	2.5	180	292	1300	1600	332	400	2.5	12.7
60964	320	440	37	2.1	210	305	1200	1400	331	428	2	15.5
61964	320	440	56	3	278	395	1300	1600	333	427	2.5	24.9
16064	320	480	50	4	275	400	1100	1300	336	466	3	34
6064	320	480	74	4	355	510	1100	1400	336	464	3	50.3
6064/C4YA8	320	480	74	4	355	510	1100	1400	336	464	3	49.6
6264	320	580	92	5	515	780	1000	1200	340	560	4	111
61868	340	420	38	2.1	169	227	1200	1500	352	408	2	11.6
61968	340	460	56	3	282	420	1100	1400	353	447	2.5	27
16068	340	520	57	4	335	520	950	1200	356	505	3	46
6068	340	520	82	5	403	620	1000	1300	360	500	4	63.4
6268	340	620	92	6	545	890	900	1000	366	599	4	112
60872	360	440	25	1.5	118	210	1130	1450	367	432	1.5	6.5
61872	360	440	38	2.1	173	242	1100	1400	351	429	2	12.2
61972	360	480	56	3	282	425	1100	1400	373	467	2.5	30.9
61972F3	360	480	56	3	282	425	1100	1400	373	467	2.5	30.2
62972X3	360	509.5	70	3	335	510	1000	1300	374	495.5	2.5	48
6072X1/C9	360	530	82	5	355	620	1000	1300	382	508	4	59.8
16072	360	540	57	4	340	540	1000	1200	376	524	3	50
6072F1	360	540	82	5	440	620	1000	1300	380	520	4	64.7
61876F1	380	480	46	2.1	278	345	1000	1300	391	469	2	19
61976	380	520	65	4	345	550	1000	1300	396	504	3	39.8
16076	380	560	57	4	368	615	940	1100	394	545	3	50
6076F3	380	560	82	5	439	665	950	1200	398	542	4	65.6
6076N1F3	380	560	82	5	435	665	950	1200	400	540	4	65.6
60880	400	500	31	2	159	277	1000	1200	410	490	2	15
61880	400	500	46	2.1	242	403	1000	1200	413	488	2	21
60980	400	540	44	3	258	435	980	1250	411	525	2.5	27.5
61980	400	540	65	4	355	585	950	1200	416	524	3	43.6
61980F3	400	540	65	4	355	585	950	1200	416	524	3	39.4
6080F1	400	600	90	5	495	780	900	1100	420	580	4	86.5
6080M	400	600	90	5	495	780	900	1100	420	580	4	87.9
61884	420	520	46	2.1	245	420	980	1250	431	508	2	21.5
61984F3/C9	420	560	65	4	335	520	900	1100	436	544	3	41.9
61984F3	420	560	65	4	335	520	900	1100	436	544	3	41.9
61984MA	420	560	65	4	320	520	900	1100	436	544	3	46.2
6084	420	620	90	5	495	875	910	1110	437	603	4	90.5
60888	440	540	31	2	155	285	870	1000	450	531	2	16.5
61888	440	540	46	2.1	245	445	870	1000	453	528	2	22
60988	440	600	50	4	305	550	870	1000	456	585	3	41
61988F3	440	600	74	4	390	650	900	1100	456	584	3	60.5
6088	440	650	94	6	525	880	850	1000	466	624	5	108
61892	460	580	56	3	303	435	900	1100	473	567	2.5	34.3
61992	460	620	72	4	410	765	870	1100	475	604	3	63
61992F3	460	620	74	4	405	680	850	1000	476	604	3	63
6092F1	460	680	100	6	553	945	800	950	483	657	5	121
61896	480	600	56	3	315	610	870	1100	492	587	2.5	36
61996F3	480	650	78	5	417	743	800	950	498	632	4	74.1
6096	480	700	100	6	605	1130	740	900	504	676	5	126
608/500	500	620	37	2.1	220	445	800	950	510	609	2	20
618/500M	500	620	56	3	315	465	800	950	513	607	2.5	37.3
619/500X3F1	500	660	75	5	440	720	750	900	520	650	4	68.8
619/500	500	670	78	5	450	860	760	900	519	651	4	79
60/500	500	720	100	6	575	1020	750	900	526	694	5	135
618/530F1	530	650	56	3	315	480	750	900	543	637	2.5	41.1
609/530	530	710	57	4	410	810	690	840	545	696	3	60
619/530F1	530	710	82	5	468	885	700	850	548	692	4	91.6
60/530	530	780	112	6	635	1260	670	810	552	757	5	188
60/530NIMA	530	780	112	6	665	1290	670	800	556	754	5	185
608/560	560	680	37	2.1	220	460	710	860	572	670	2	30
618/560F1	560	680	56	3	328	525	700	850	573	667	2.5	42.1
618/560MA	560	680	56	3	328	525	700	850	573	667	2.5	42.7
619/560F1	560	750	85	5	475	925	670	800	578	732	4	110
60/560F3	560	820	115	6	670	1370	630	750	586	794	5	75.7
60/560NIMAS/C9	560	820	115	6	630	1500	630	750	586	794	5	208
66/570XIM	570	799	115	6	641	1280	480	600	598	770	5	181
D66/600	600	700	100	3	345	710	670	800	610	690	2.5	60.6
608/600	600	730	42	3	260	550	670	800	614	718	2.5	41
608/600MA	600	730	42	3	260	550	670	800	614	718	2.5	40
618/600	600	730	60	3	345	710	670	800	613	717	2.5	52.7
60/600/HC	600	870	118	6	692	1450	600	700	623	847	5	233
608/630	630	780	48	3	355	765	640	760	643	767	2.5	41
618/630L/P5	630	780	69	4	420	760	630	750	645	765	3	65.7
609/630	630	850	71	5	475	1050	600	710	649	832	4	112
619/630	630	850	100	6	610	1330	600	710	654	829	5	163
60/630	630	920	128	7.5	800	1750	550	660	657	891	6	280
618/670F3	670	820	69	4	420	780	560	670	685	805	3	80.8
618/670Q1	670	820	69	4	420	780	560	670	685	805	3	82.8
618/670/C4	670	820	69	4	420	780	560	670	685	805	3	82.2
609/670	670	900	73	5	540	1210	580	700	689	882	4	143
619/670MA	670	900	103	6	670	1450	530	630	693	877	5	194
60/670F3	670	980	136	7.5	904	1900	500	600	698	952	6	361
60/670N1	670	980	136	7.5	904	1900	500	600	698	952	6	366
618/710F3	710	870	74	4	451	905	530	630	725	855	3	96.1
618/710	710	870	74	4	451	905	530	630	725	855	3	98.1
609/710	710	950	78	5	545	1280	500	610	729	932	4	148
619/710	710	950	106	6	645	1510	500	610	732	928	5	218
60/710	710	1030	140	7.5	935	2180	490	560	738	1002	6	375
618/750	750	920	78	5	515	1240	480	610	766	901	4	110
619/750	750	1000	112	6	745	1790	490	570	774	977	5	260
60/750	750	1090	150	7.5	975	2370	450	530	778	1061	6	490
608/800	800	980	57	4	390	990	430	510	815	966	3	100
618/800	800	980	82	5	545	1360	430	510	820	960	4	132
618/800MA	800	980	82	5	545	1360	430	510	820	960	4	133
619/800	800	1060	115	6	815	2100	430	500	823	1037	5	280
160/800X2F1	800	1150	115	7.5	950	2080	500	550	820	1130	6	427
60/800	800	1150	155	7.5	985	2530	400	480	828	1120	6	540
608/850	850	1030	57	4	385	1000	450	500	865	1015	3	75
618/850	850	1030	82	5	555	1310	450	530	870	1010	4	144
618/850F3	850	1030	82	5	555	1300	450	530	870	1010	4	144
619/850	850	1120	118	6	815	2150	400	480	873	1098	5	315
60/850	850	1220	165	7.5	1090	2980	370	430	879	1190	6	640
618/900F3	900	1090	85	5	600	1430	380	450	918	1072	4	155
619/900	900	1180	122	6	830	2270	360	440	923	1156	5	355
60/900	900	1280	170	7.5	1080	3120	330	410	928	1252	6	725
618/950FI/C9	950	1150	90	5	663	1620	360	430	968	1132	4	188
619/950	950	1250	132	7.5	985	2850	330	410	979	1222	6	395
60/950	950	1360	180	7.5	1145	3315	310	380	979	1330	6	850
608/1000	1000	1220	71	5	540	1550	350	400	1018	1201	4	175
618/1000F1	1000	1220	100	6	635	1720	340	400	1026	1194	5	230
609/1000	1000	1320	103	6	800	2340	330	380	1023	1297	5	405
619/1000	1000	1320	140	7.5	985	2880	330	380	1028	1292	6	525
60/1000	1000	1420	185	7.5	1320	3900	280	340	1028	1392	6	925
618/1060	1060	1280	100	6	710	2140	310	350	1084	1259	5	265
619/1060	1060	1400	150	7.5	985	3030	290	330	1089	1371	6	615
60/1060	1060	1500	195	9.5	1320	3860	250	330	1094	1466	8	1090
618/1120	1120	1360	106	6	725	2180	290	350	1143	1336	5	310
619/1120	1120	1460	150	7.5	1010	3070	270	330	1148	1432	6	640
60/1120	1120	1580	200	9.5	1430	4480	250	300	1155	1546	8	1245
618/1180F1	1180	1420	106	6	920	2580	320	360	1206	1394	5	310
619/1180	1180	1540	160	7.5	1115	3630	210	270	1209	1513	6	765
618/1240X1	1240	1480	112	6	930	2660	300	340	1266	1454	5	356
618/1250	1250	1500	112	6	830	2740	210	270	1274	1479	5	390
66/1280FI/C9	1280	1560	150	6	939	2750	220	280	1306	1534	5	606
618/1320X2F1/C9	1320	1600	150	6	956	2830	200	260	1343	1577	5	520
618/1320F3	1320	1600	122	6	955	2830	200	260	1343	1377	5	512
609/1320	1320	1720	128	7.5	1180	4060	190	230	1348	1691	6	835
619/1320F3/YB2	1320	1720	175	7.5	1140	3500	360	450	1348	1692	6	1112
618/1400	1400	1700	132	7.5	1070	3980	190	230	1427	1672	6	620
619/1400	1400	1820	185	9.5	1550	5520	180	230	1434	1777	8	1260
618/1500	1500	1820	140	7.5	1190	4310	170	210	1528	1791	6	695
619/1500	1500	1950	195	9.5	1680	6220	160	190	1535	1915	8	1515
618/1600	1600	1950	155	7.5	1240	4750	150	180	1627	1923	6	975
619/1600	1600	2060	200	9.5	1820	6300	260	300	1634	2026	8	1711
619/1600F3	1600	2060	200	9.5	1820	6300	260	300	1634	2026	8	1681
618/1700	1700	2060	160	7.5	1240	4950	130	160	1729	2032	6	1110
619/1700	1700	2180	212	9.5	1950	7680	120	150	1735	2145	8	1930

Our Factory

High-quality bearing production line

Customer reviews

Real customer reviews, ratings, and testimonials

We have worked with Huanfang Bearing for many years, and their products have always been reliable with consistently on-time delivery. A high-quality supplier worthy of long-term cooperation.

Their bearings are highly adaptable anddurable, making them very suitable forharsh outdoor environments. We use themon agricultural equipment and they rarelyneed to be replaced frequently.

avdsdvsfbdbf

advsfdfdngfd

svddsfbdng

advsfvdbf
