Deep Groove Ball Bearings（ZZ/2RZ）

Built on precision manufacturing and strict quality control, we deliver reliable, stable, and high-performance bearing solutions to customers worldwide.

Deep Groove Ball Bearings（ZZ/2RZ）

The ZZ features a double-sided non-contact seal and is made of stamped steel dust cover. It is designed for dust prevention, good heat dissipation, and high speed, making it suitable for medium-speed dust prevention applications (such as small motors and power tools). A common model is 6203ZZ. The 2RZ features a rubber sealing ring with a steel skeleton, providing a superior sealing effect, lower friction noise, and better grease locking to prevent impurities. It is suitable for medium-to-high-speed applications where sealing and quiet operation are required (such as precision instruments and home appliances).

Deep Groove Ball Bearings（ZZ/2RZ）

Description

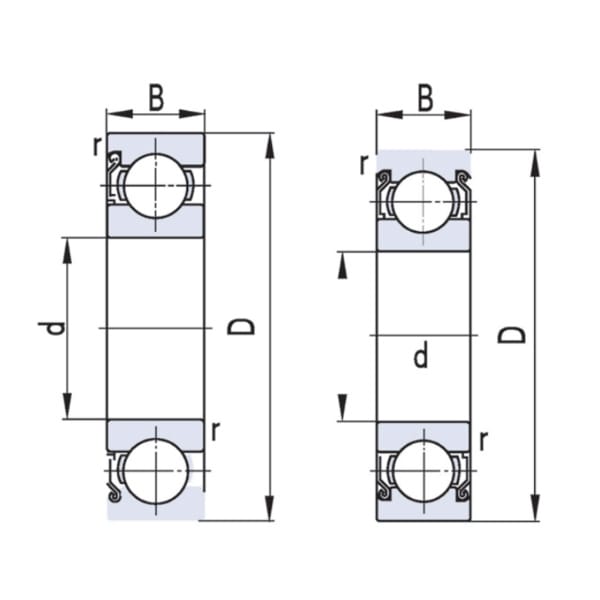

Bearing Code	Basic Dimensions (mm)				Basic Rated Load (kN)		Limiting Speed (r/min)		Installation Related Dimensions (mm)				Weight (Kg)
Bearing Code	d	D	B	rs min	Cr	Cor	Grease lubrication	Oil lubrication	Ds(min)	Ds(max)	dh(max)	R(max)	Weight (Kg)
6200-Z	10	30	9	0.6	6.5	3	24000	30000	13.5	14.5	26	0.6	0.0271
6200-2Z	10	30	9	0.6	6.5	3	24000	30000	13.5	14.5	26	0.6	0.027
6201-Z	12	32	10	0.6	6.5	3	22000	28000	16	16.5	28	0.6	0.0369
6201-2Z	12	32	10	0.6	6.5	3	22000	28000	16	16.5	28	0.6	0.0373
6202-Z	15	35	11	0.6	8	4	19000	24000	19		31	0.6	0.0432
6202-2Z	15	35	11	0.6	8	4	19000	24000	19		31	0.6	0.045
6203-2Z	17	40	12	0.6	9.1	5	17000	20000	21		36	0.6	0.0642
6203-Z	17	40	12	0.6	9.1	5	17000	20000	21		36	0.6	0.0665
6204-2Z	20	47	14	l	13	6.7	15000	18000	25		42	1	0.11l
6204-Z	20	47	14	1	13	6.7	15000	18000	25		42	1	0.109
6205-2Z	25	52	15	1	14.3	8	12000	18000	30		47	1	0.135
6205-Z	25	52	15	1	14.3	8	12000	15000	30		47	1	0.136
6305-2Z	25	62	17	1.1	22.4	11.5	11000	14000	32		55	1	0.218
6006-2Z	30	55	13	1	13.3	6.9	12000	15000	35		50	1	0.12
6206-2Z	30	62	16	1	19.2	11.4	10000	13000	35		57	1	0.224
6206-Z	30	62	16	1	19.2	11.4	10000	13000	35		57	1	0.223
6206-ZS	30	62	16	1	19.2	11.4	10000	13000	35		57	1	0.223
6306-2Z	30	72	19	1.1	26.7	15	9000	11000	36.5		65.5	1	0.357
6306-Z	30	72	19	1.1	26.7	15	9000	11000	36.5		65.5	1	0.356
6007-Z/C3	35	62	14	1	16	10.3	10000	13000	40		57	1	0.154
6207-2Z	35	72	17	1.1	25.7	15.3	9000	11000	41.5		65.5	1	0.3
6207-Z	35	72	17	1.1	25.7	15.3	9000	11000	41.5		65.5	1	0.29
6307-2Z	35	80	21	1.5	35.5	19.2	8500	10000	43		72	1.5	0.476
6307-Z	35	80	21	1.5	35.5	19.2	8500	10000	43		72	1.5	0.466
6008-2Z	40	68	15	1	16.8	11.6	9500	12000	45		63	1	0.191
6008-RZ	40	68	15	1	16.8	11.6	9500	12000	45		63	1	0.196
6208-2Z	40	80	18	1.1	31	16.8	8500	10000	46.5	50.5	73.5	1	0.38
6208-Z	40	80	18	1.1	31	16.8	8500	10000	46.5		73.5	1	0.371
6312-2Z	60	130	31	2.1	82	48.5	5000	6000	71	76	119	2	1.69
6312-2Z/YA7	60	130	31	2.1	82	48.5	5000	6000	71		119	2	1.66
6312-Z	60	130	31	2.1	82	48.5	5000	6000	71		119	2	1.66
6013-2Z	65	100	18	1.1	32	25	6300	7500	71.5		93.5	1	0.459
6213-2Z	65	120	23	1.5	56	41	5300	6300	73		112	1.5	1.02
6213-Z	65	120	23	1.5	56	41	5300	6300	73		112	1.5	1.01
6213-Z/HQ1	65	120	23	1.5	56	41	5300	6300	73		112	1.5	1.05
6213-2Z/YA7	65	120	23	1.5	56	41	5300	6300	73	79	112	1.5	1
6313-2Z/YA7	65	140	33	2.1	92.5	59.5	5000	6000	76	81	129	2	2.15
6313-2Z	65	140	33	2.1	92.5	59.5	5000	6000	76		129	2	2.12
6313-Z	65	140	33	2.1	92.5	59.5	5000	6000	76		129	2	2.12
6014-2Z	70	110	20	1.1	35.8	27.3	6000	7000	76		104	l	0.625
6214-2Z/YA7	70	125	24	1.5	60.5	46	5000	6000	78	83	117	1.5	1.15
6214-2Z	70	125	24	1.5	60.5	46	5000	6000	78		117	1.5	1.13
6214-Z	70	125	24	1.5	60.5	46	5000	6000	78		117	1.5	1.16
6314-2Z	70	150	35	2.1	104	68	4500	5300	81		139	2	2.35
6314-2Z/P6CMV2	70	150	35	2.1	104	68	4500	5300	81		139	2	2.51
6314-2Z/YA7	70	150	35	2.1	104	68	4500	5300	81	87	139	2	2.51
6314-Z	70	150	35	2.1	104	68	4500	5300	81	–	139	2	2.58
6015-2Z	75	115	20	1.1	38	31	5600	6700	81.5		108.5	1	0.624
6015-Z	75	115	20	1.1	38	31	5600	6700	81.5		108.5	1	0.658
6215-2Z	75	130	25	1.5	66	50	4800	5600	83		122	1.5	1.18
6215-Z	75	130	25	1.5	66	50	4800	5600	83		122	1.5	1.16
6215-Z/HQ1	75	130	25	1.5	66	50	4800	5600	83		122	1.5	1.22
6215-2Z/YA7	75	130	25	1.5	66	50	4800	5600	83	87	122	1.5	1.17
6315-2Z	75	160	37	2.1	113	116	4300	5000	86		149	2	3.17
6315-Z	75	160	37	2.1	113	116	4300	5000	86		149	2	3.01
6315-2Z/YA7	75	160	37	2.1	113	116	4300	5000	86	94	149	2	3.14
6016-Z	80	125	22	1.1	47.5	40	5300	6300	86.5		118.5	1	0.86
6016-2Z	80	125	22	1.1	47.5	40	5300	6300	86.5		118.5	1	0.848
6216-2Z/YA7	80	140	26	2	71.5	54.5	4500	5300	89	94	131	2	1.42
6216-2Z	80	140	26	2	71.5	54.5	4500	5300	89		131	2	1.46
6216-Z	80	140	26	2	71.5	54.5	4500	5300	89		131	2	1.44
6316-Z	80	170	39	2.1	119	86.5	3800	4500	91		159	2	3.36
6316-2Z	80	170	39	2.1	119	86.5	3800	4500	91		159	2	3.72
6316-2Z/YA7	80	170	39	2.1	119	86.5	3800	4500	91	100	159	2	3.67
6017-2Z	85	130	22	1.1	47.5	40	5000	6000	92		123	1	0.965
6217-Z	85	150	28	2	83	64	4300	5000	94		141	2	1.85
6217-2Z	85	150	28	2	83	64	4300	5000	94	99	141	2	1.85
6217-2Z/YA7	85	150	28	2	83	64	4300	5000	94	99	141	2	1.78
6317-Z	85	180	41	3	102	96.5	4300	5000	98		167	2.5	4.35
6317-2Z	85	180	41	3	102	96.5	4300	5000	98		167	2.5	4.35
6317-2Z/YA7	85	180	41	3	102	96.5	4300	5000	98	107	167	2.5	4.35
IS-6317-2Z/P6CMV2	85	180	41	3	102	96.5	4300	5000	98		167	2.5	4.3
6317-2Z/P6CMV2	85	180	41	3	102	96.5	4300	5000	98		167	2.5	4.3
6018-Z	90	140	24	1.5	58.5	50.1	4800	5600	98		132	1.5	1.16
6018-2Z	90	140	24	1.5	58.5	50	4800	5600	98		132	1.5	1.18
6218-Z	90	160	30	2	95.5	72	3800	4500	99		151	2	2.21
6218-2Z	90	160	30	2	95.5	72	3800	4500	99		151	2	2.21
6218-2Z/YA7	90	160	30	2	95.5	72	3800	4500	99	105	151	2	2.2
6318-2Z/YA7	90	190	43	3	144	108	3400	4000	103	114	177	2.5	5.04
6318M-Z/YA8P54	90	190	43	3	144	108	3400	4000	103		177	2.5	6.39
6318-2Z	90	190	43	3	144	108	3400	4000	103		177	2.5	5.07
6318-Z	90	190	43	3	144	108	3400	4000	103		177	2.5	5.04
6019-Z	95	145	24	1.5	78.5	54	4500	5300	103		137	1.5	1.16
6019-Z/HQ1	95	145	24	1.5	78.5	54	4500	5300	103		137	1.5	1.31
6019-2Z	95	145	24	1.5	78.5	54	4500	5300	103		137	1.5	1.17
6219-Z	95	170	32	2.1	108	81.5	3600	4300	106	111	159	2	2.63
6219-2Z	95	170	32	2.1	108	81.5	3600	4300	106	111	159	2	2.65
6219-2Z/YA7	95	170	32	2.1	108	81.5	3600	4300	106	111	159	2	2.38
6319-2Z	95	200	45	3	152	122	3200	3800	108	113	187	2.5	5.93
6319-2Z/YA7	95	200	45	3	152	122	3200	3800	108	113	187	2.5	5.72
6020-2Z	100	150	24	1.5	57.5	56.5	4300	5000	108		142	1.5	1.2
6020-2Z/C9	100	150	24	1.5	57.5	56.5	4300	5000	108	110	142	1.5	1.16
6020-Z	100	150	24	1.5	57.5	56.5	4300	5000	108		142	1.5	1.19
6220-Z	100	180	34	2.1	122	93	3400	4000	111		169	2	3.26
6220-2Z	100	180	34	2.1	122	93	3400	4000	111		169	2	3.22
6220-2Z/YA7	100	180	34	2.1	122	93	3400	4000	111	118	169	2	3.2
6320-Z	100	215	47	3	173	141	2800	3600	113		202	2.5	7.12
6320-2Z	100	215	47	3	173	141	2800	3600	113	131	202	2.5	7.14
6320-2Z/YA7	100	215	47	3	173	141	2800	3600	113	131	202	2.5	6.93
6021-2Z/C3Z1	105	160	26	2	78	55	4000	4800	116		149	2	1.66
6221-2Z	105	190	36	2.1	126	98	3200	3800	117		178	2	3.94
6022-Z/HQ1	110	170	28	2	82	73.5	3800	4500	119		161	2	2.4
6022-2Z	110	170	28	2	82	73.5	3800	4500	119		161	2	2.14
60722	110	175	31	2.3	205	176	3800	4500	122		163	2.3	2.67
6222-Z	110	200	38	2.1	132	106	2800	3400	121		189	2	4.58
6222-2Z	110	200	38	2.1	132	106	2800		121		189	2	4.61
6322-2Z	110	240	50	3	205	176	2400	3000	123		227	2.5	9.55
6322-2Z/YA7	110	240	50	3	205	176	2400	3000	123	146	227	2.5	9.59
6024-2Z	120	180	28	2	85.5	80	3400	4000	129	132	171	2	2.13
6024-Z	120	180	28	2	85.5	80	3400	4000	129	132	171	2	2.26
6024-Z/C9	120	180	28	2	85.5	80	3400	4000	129	132	171	2	2.26
6224-2Z	120	215	40	2.1	154	130	2800		131		204	2	5.24
6026-Z	130	200	33	2	101	94	3200	3800	139		191	2	3.29
6026-2Z	130	200	33	2	100	94	3200		139		191	2	3.29
6226-Z	130	230	40	3	153	134	2600	3200	144		216	2.5	6.35
6226-2Z	130	230	40	3	153	134	2600		144		216	2.5	6.36
6326-2Z	130	280	58	4	240	226	2300		150		265	3	15.4
6028-Z	140	210	33	2	106	102	2700	3200	149		201	2	3.25
