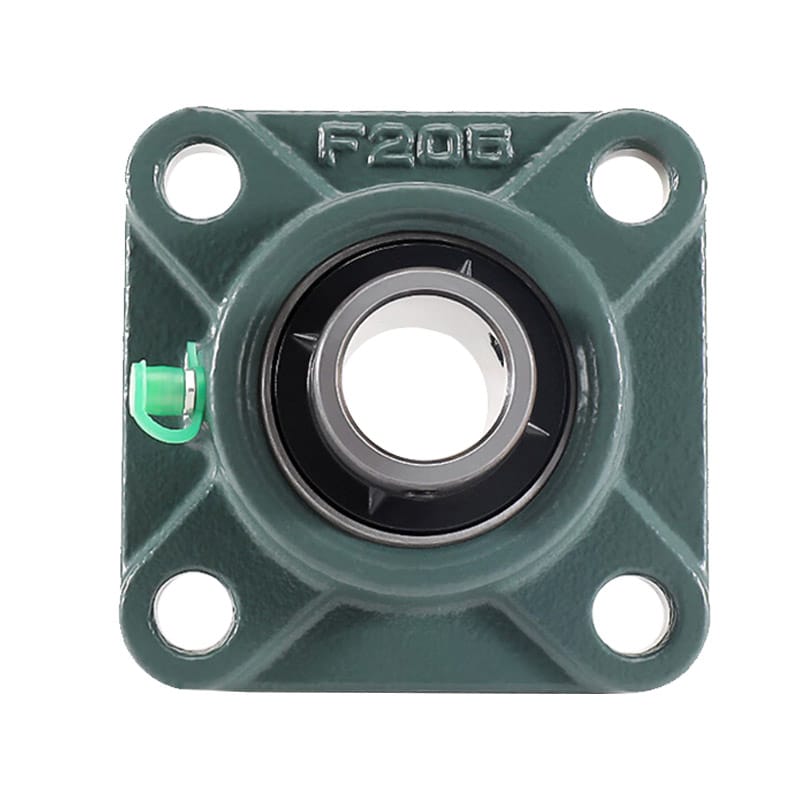

UCF, UELF, UKF+H Series

Built on precision manufacturing and strict quality control, we deliver reliable, stable, and high-performance bearing solutions to customers worldwide.

UCF, UELF, UKF+H Series

The structure with a boss provides higher positioning accuracy and reduces displacement during equipment operation, making it suitable for precision general-purpose machinery with high installation accuracy requirements.

UCF, UELF, UKF+H Series

Description

Shaft Dimensions (mm)	Size (mm)									Nominal Designation Of Mounting Bolts	Nominal Code Of The Component	Applicable to: Bearing housings (general grade)	Bearing Nominal Code	Applicable bearings Basic rated load (kN)		Coefficient fo	Reference Component Weight (kg)
d	L	A	J	N	A1	A₂	Ao	B	S	Nominal Designation Of Mounting Bolts	Nominal Code Of The Component	Applicable to: Bearing housings (general grade)	Bearing Nominal Code	Cr	Cor	Coefficient fo	ordinary products	cast iron
12	86	25.5	64	12	11	15	33.3	31	12.7	M10	UCF201	F204	UC201	12.8	6.65	13.2	0.64	一
15	86	25.5	64	12	11	15	33.3	31	12.7	M10	UCF202	F204	UC202	12.8	6.65	13.2	0.62	一
17	86	25.5	64	12	11	15	33.3	31	12.7	M10	UCF203	F204	UC203	12.8	6.65	13.2	0.61	–
20	86	25.5	64	12	11	15	33.3	31	12.7	M10	UCF204	F204	UC204	12.8	6.65	13.2	0.59	0.74
25	95	27	70	12	13	16	35.8	34.1	14.3	M10	UCF205	F205	UC205	14.0	7.85	13.9	0.83	1.0
25	110	29	80	16	13	16	39	38	15	M14	UCF305	F305	UC305	21.2	10.9	12.6	1.3	1.6
30	108	31	83	12	13	18	40.2	38.1	15.9	M10	UCF206	F206	UC206	19.5	11.3	13.9	1.1	1.4
30	125	32	95	16	15	18	44	43	17	M14	UCF306	F306	UC306	26.7	15.0	13.3	1.9	2.2
35	117	34	92	14	15	19	44.4	42.9	17.5	M12	UCF207	F207	UC207	25.7	15.4	13.9	1.5	1.9
35	135	36	100	19	16	20	49	48	19	M16	UCF307	F307	UC307	33.4	19.3	13.2	2.3	2.7
40	130	36	102	16	15	21	51.2	49.2	19	M14	UCF208	F208	UC208	29.1	17.8	14.0	1.9	2.3
40	150	40	112	19	17	23	56	52	19	M16	UCF308	F308	UC308	40.7	24.0	13.2	3.1	3.6
45	137	38	105	16	16	22	52.2	49.2	19	M14	UCF209	F209	UC209	34.1	21.3	14.0	2.2	2.6
45	160	44	125	19	18	25	60	57	22	M16	UCF309	F309	UC309	48.9	29.5	13.3	4.0	4.6
50	143	40	111	16	16	22	54.6	51.6	19	M14	UCF210	F210	UC210	35.1	23.3	14.4	2.5	3.0
50	175	48	132	23	19	28	67	61	22	M20	UCF310	F310	UC310	62.0	38.3	13.2	5.1	5.9
55	162	43	130	19	18	25	58.4	55.6	22.2	M16	UCF211	F211	UC211	43.4	29.4	14.4	3.4	4.0
55	185	52	140	23	20	30	71	66	25	M20	UCF311	F311	UC311	71.6	45.0	13.2	5.6	6.5
60	175	48	143	19	18	29	68.7	65.1	25.4	M16	UCF212	F212	UC212	52.4	36.2	14.4	4.2	5.0
60	195	56	150	23	22	33	78	71	26	M20	UCF312	F312	UC312	81.9	52.2	13.2	6.9	8.1
65	187	50	149	19	22	30	69.7	65.1	25.4	M16	UCF213	F213	UC213	57.2	40.1	14.4	5.2	6.0
65	208	58	166	23	22	33	78	75	30	M20	UCF313	F313	UC313	92.7	59.9	13.2	7.8	8.9
70	193	54	152	19	22	31	75.4	74.6	30.2	M16	UCF214	F214	UC214	62.2	44.1	14.5	5.9	6.8
70	226	61	178	25	25	36	81	78	33	M22	UCF314	F314	UC314	104	68.2	13.2	10.1	11.2
75	200	56	159	19	22	34	78.5	77.8	33.3	M16	UCF215	F215	UC215	67.4	48.3	14.5	6.4	7.4
75	236	66	184	25	25	39	89	82	32	M22	UCF315	F315	UC315	113	77.2	13.2	116	12.9
80	208	58	165	23	22	34	83.3	82.6	33.3	M20	UCF216	F216	UC216	72.7	53.0	14.6	7.3	8.5
80	250	68	196	31	27	38	90	86	34	M27	UCF316	F316	UC316	123	86.7	13.3	12.8	14.2
85	220	63	175	23	24	36	87.6	85.7	34.1	M20	UCF217	F217	UC217	84.0	61.9	14.5	8.9	10.3
85	260	74	204	31	27	44	100	96	40	M27	UCF317	F317	UC317	133	96.8	13.3	15.3	16.9
90	235	68	187	23	25	40	96.3	96	39.7	M20	UCF218	F218	UC218	96.1	71.5	14.5	11.4	12.9
90	280	76	216	35	30	44	100	96	40	M30	UCF318	F318	UC318	143	107	13.3	18.9	20.8
95	290	94	228	35	30	59	121	103	41	M30	UCF319	F319	UC319	153	119	13.3	21.6	23.8
100	310	94	242	38	32	59	125	108	42	M33	UCF320	F320	UC320	173	141	13.2	25.8	28.6
105	310	94	242	38	32	59	127	112	44	M33	UCF321	F321	UC321	184	153	13.2	30.2	33.2
110	340	96	266	41	35	60	131	117	46	M36	UCF322	F322	UC322	205	180	13.2	35.3	41.7
120	370	110	290	41	40	65	140	126	51	M36	UCF324	F324	UC324	207	185	13.5	47.3	52.1
130	410	115	320	41	45	65	146	135	54	M36	UCF326	F326	UC326	229	214	13.6	65.5	71.6
140	450	125	350	41	55	75	161	145	59	M36	UCF328	F328	UC328	253	246	13.6	80.4	89

Shaft Dimensions (mm)	Size (mm)									Nominal Designation Of Mounting Bolts	Nominal Code Of The Component	Applicable to: Bearing housings (general grade)	Bearing Nominal Code	Applicable bearings Basic rated load (kN)		Coefficient	Applicable lock sleeve	Reference Component Weight (kg)
d1	L	A	J	N	A1	A2	Ao	B1	de(最小)	Nominal Designation Of Mounting Bolts	Nominal Code Of The Component	Applicable to: Bearing housings (general grade)	Bearing Nominal Code	Cr	Cor	fo	Applicable lock sleeve	ordinary products	cast iron
20	95	27	70	12	13	16	36	35	30	M10	UKF205	F205	UK205	14.0	7.85	13.9	H2305X	0.87	1.1
20	110	29	80	16	13	16	37.5	35	一	M14	UKF305	F305	UK305	21.2	10.9	12.6	H2305X	1.4	1.7
25	108	31	83	12	13	18	39.5	38	36	M10	UKF206	F206	UK206	19.5	11.3	13.9	H2306X	1.3	1.6
25	125	32	95	16	15	18	41	38	–	M14	UKF306	F306	UK306	26.7	15.0	13.3	H2306X	1.9	2.2
30	117	34	92	14	15	19	43	43	41	M12	UKF207	F207	UK207	25.7	15.4	13.9	H2307X	1.6	2.0
30	135	36	100	19	16	20	45.5	43		M16	UKF307	F307	UK307	33.4	19.3	13.2	H2307X	2.3	2.8
35	130	36	102	16	15	21	48	46	46	M14	UKF208	F208	UK208	29.1	17.8	14.0	H2308X	1.9	2.3
35	150	40	112	19	17	23	50.5	46	–	M16	UKF308	F308	UK308	40.7	24.0	13.2	H2308X	3.1	3.6
40	137	38	105	16	16	22	51	50	52	M14	UKF209	F209	UK209	34.1	21.3	14.0	H2309X	2.3	2.8
40	160	44	125	19	18	25	55	50	–	M16	UKF309	F309	UK309	48.9	29.5	13.3	H2309X	4.1	4.7
45	143	40	111	16	16	22	52	55	58	M14	UKF210	F210	UK210	35.1	23.3	14.4	H2310X	2.6	3.1
45	175	48	132	23	19	28	60	55	–	M20	UKF310	F310	UK310	62.0	38.3	13.2	H2310X	5.1	5.9
50	162	43	130	19	18	25	57	59	64	M16	UKF211	F211	UK211	43.4	29.4	14.4	H2311X	3.5	4.1
50	185	52	140	23	20	30	64	59	一	M20	UKF311	F311	UK311	71.6	45.0	13.2	H2311X	5.9	6.8
55	175	48	143	19	18	29	65.5	62	69	M16	UKF212	F212	UK212	52.4	36.2	14.4	H2312X	4.1	4.9
55	195	56	150	23	22	33	69.5	62	一	M20	UKF312	F312	UK312	81.9	52.2	13.2	H2312X	6.8	8.0
60	187	50	149	19	22	30	67.5	65	74	M16	UKF213	F213	UK213	57.2	40.1	14.4	H2313X	5.1	6.0
60	208	58	166	23	22	33	71.5	65	一	M20	UKF313	F313	UK313	92.7	59.9	13.2	H2313X	7.9	9.0
65	200	56	159	19	22	34	74.5	73	85	M16	UKF215	F215	UK215	67.4	48.3	14.5	H2315X	6.5	7.5
65	236	66	184	25	25	39	81.5	73		M22	UKF315	F315	UK315	113	77.2	13.2	H2315X	11.7	13.1
70	208	58	165	23	22	34	78.5	78	90	M20	UKF216	F216	UK216	72.7	53.0	14.6	H2316X	7.6	8.9
70	250	68	196	31	27	38	82.5	78		M27	UKF316	F316	UK316	123	86.7	13.3	H2316X	12.9	14.5
75	220	63	175	23	24	36	82.5	82	96	M20	UKF217	F217	UK217	84.0	61.9	14.5	H2317X	9.0	10.4
75	260	74	204	31	27	44	92	82	–	M27	UKF317	F317	UK317	133	96.8	13.3	H2317X	15.2	17.0
80	235	68	187	23	25	40	89.5	86	102	M20	UKF218	F218	UK218	96.1	71.5	14.5	H2318X	114	13.0
80	280	76	216	35	30	44	92	86		M30	UKF318	F318	UK318	143	107	13.3	H2318X	19.0	21.1
85	290	94	228	35	30	59	111	90	–	M30	UKF319	F319	UK319	153	119	13.3	H2319X	21.9	24.3
90	310	94	242	38	32	59	113	97	–	M33	UKF320	F320	UK320	173	141	13.2	H2320X	25.4	28.5
100	340	96	266	41	35	60	120	105	–	M36	UKF322	F322	UK322	205	180	13.2	H2322X	35.2	38.7
110	370	110	290	41	40	65	130.5	112	–	M36	UKF324	F324	UK324	207	185	13.5	H2324X	47.6	52.7
115	410	115	320	41	45	65	131.5	121	–	M36	UKF326	F326	UK326	229	214	13.6	H2326X	65.3	71.9
125	450	125	350	41	55	75	147.5	131	–	M36	UKF328	F328	UK328	253	246	13.6	H2328X	74.9	83.5
