UCP, UELP, UKP+H Series

Built on precision manufacturing and strict quality control, we deliver reliable, stable, and high-performance bearing solutions to customers worldwide.

UCP, UELP, UKP+H Series

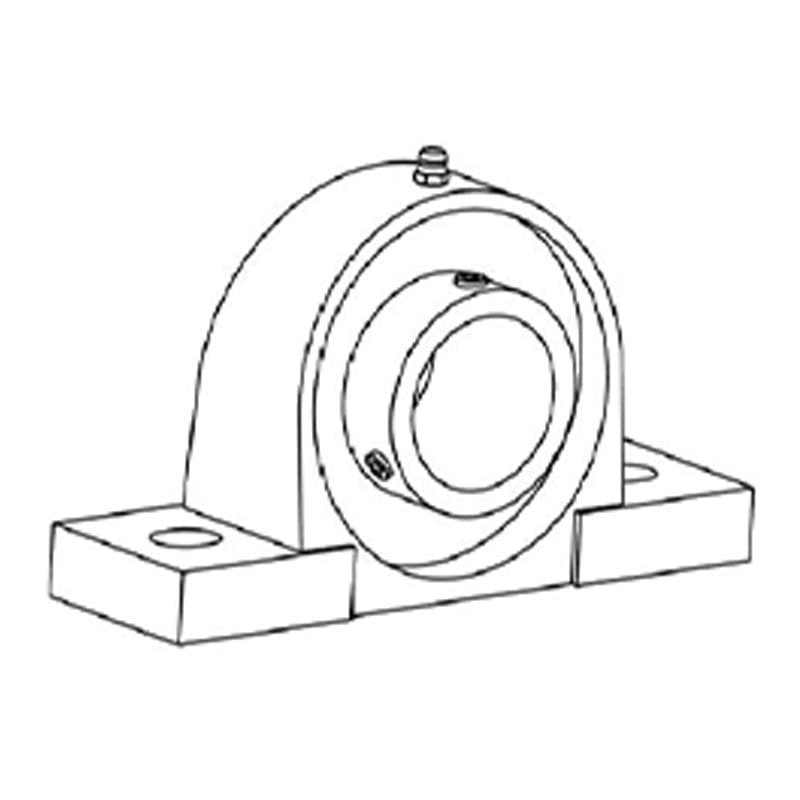

The base is rectangular, installed vertically, and has an opening at the top for easy assembly and disassembly. It is commonly used in horizontal shaft drive equipment such as belt conveyors and agricultural machinery.

UCP, UELP, UKP+H Series

Description

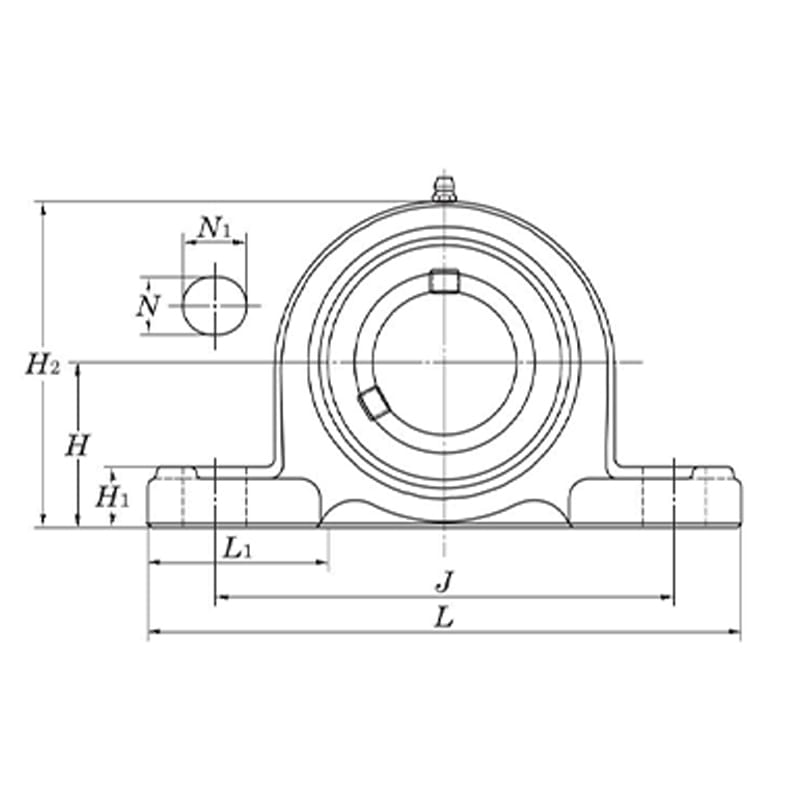

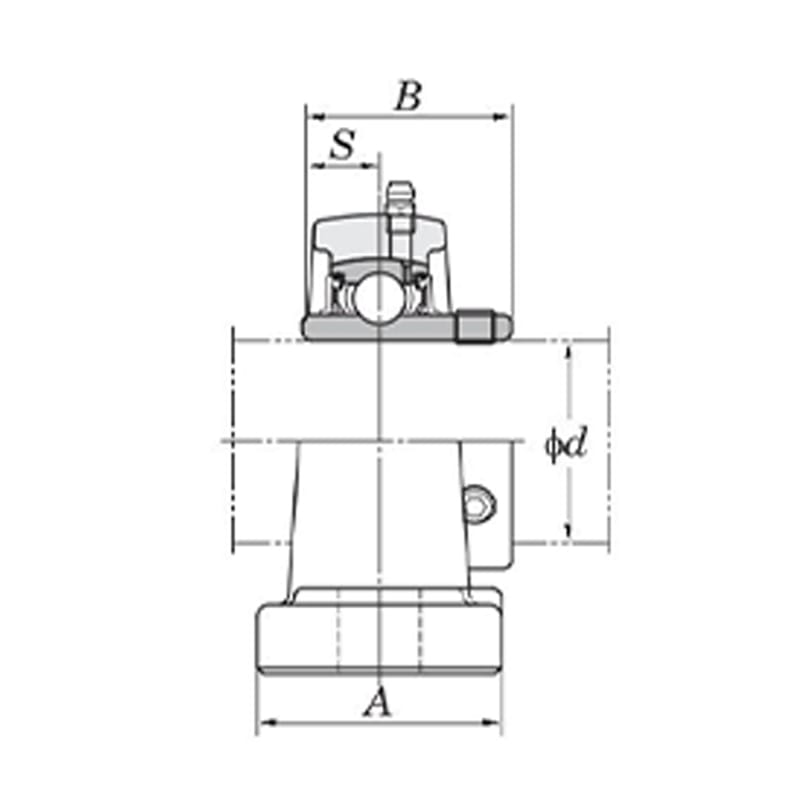

Size (mm)											Nominal Designation Of Mounting Bolts	Nominal Code 0f The Component	Applicable to: Bearing Housings (General Grade)	Applicable Lock Sleeve	Bearing Nominal Code	Basic Rated Load (kN)		Coefficient	Reference Component Weight (kg)
H	L	A	J	N	N1	H₁	H₂	L1	B	S	Nominal Designation Of Mounting Bolts	Nominal Code 0f The Component	Applicable to: Bearing Housings (General Grade)	Applicable Lock Sleeve	Bearing Nominal Code	Cr	Cor	fo	Ordinary products	Cast iron
30.2	127	38	95	13	18	16	60	36	31	12.7	M10	UCP201	P203		UC201	12.8	6.65	13.2	0.63
30.2	127	38	95	13	18	16	60	36	31	12.7	M10	UCP202	P203		UC202	12.8	6.65	13.2	0.61	一
30.2	127	38	95	13	18	16	60	36	31	12.7	M10	UCP203	P203		UC203	12.8	6.65	13.2	0.60	一
33.3	127	38	95	13	18	16	65	36	31	12.7	M10	UCP204	P204		UC204	12.8	6.65	13.2	0.66	0.96
36.5	140	38	105	13	18	16	70	38	34.1	14.3	M10	UCP205	P205		UC205	14.0	7.85	13.9	0.80	1.2
45	175	45	132	17	20	16	85	55	38	15	M14	UCP305	P305		UC305	21.2	10.9	12.6	1.7	2.3
42.9	165	48	121	17	21	17	84	48	38.1	15.9	M14	UCP206	P206		UC206	19.5	11.3	13.9	1.3	1.8
50	180	50	140	17	20	17	95	53	43	17	M14	UCP306	P306		UC306	26.7	15.0	13.3	2.2	2.8
47.6	167	48	127	17	21	18	95	47	42.9	17.5	M14	UCP207	P207		UC207	25.7	15.4	13.9	16	2.3
56	210	56	160	17	25	19	107	65	48	19	M14	UCP307	P307		UC307	33.4	19.3	13.2	3.0	3.8
49.2	184	54	137	17	21	18	98	53	49.2	19	M14	UCP208	P208		UC208	29.1	17.8	14.0	2.0	2.8
60	220	60	170	17	27	19	118	65	52	19	M14	UCP308	P308		UC308	40.7	24.0	13.2	3.8	4.8
54	190	54	146	17	21	20	106	55	49.2	19	M14	UCP209	P209		UC209	34.1	21.3	14.0	2.2	3.0
67	245	67	190	20	30	21	132	75	57	22	M16	UCP309	P309		UC309	48.9	29.5	13.3	4.9	6.2
57.2	206	60	159	20	22	21	113	60	51.6	19	M16	UCP210	P210		UC210	35.1	23.3	14.4	2.9	3.9
75	275	75	212	20	35	24	148	88	61	22	M16	UCP310	P310		UC310	62.0	38.3	13.2	6.6	8.2
63.5	219	60	171	20	22	23	125	65	55.6	22.2	M16	UCP211	P211		UC211	43.4	29.4	14.4	3.6	4.8
80	310	80	236	20	38	27	158	90	66	25	M16	UCP311	P311		UC311	71.6	45.0	13.2	7.9	9.7
69.8	241	70	184	20	25	25	138	73	65.1	25.4	M16	UCP212	P212		UC212	52.4	36.2	14.4	4.9	6.4
85	330	85	250	25	38	29	167	103	71	26	M20	UCP312	P312		UC312	81.9	52.2	13.2	9.5	11.8
76.2	265	70	203	25	30	27	150	78	65.1	25.4	M20	UCP213	P213		UC213	57.2	40.1	14.4	5.9	7.6
90	340	90	260	25	38	32	176	110	75	30	M20	UCP313	P313		UC313	92.7	59.9	13.2	10.7	12.8
79.4	266	72	210	25	30	27	157	75	74.6	30.2	M20	UCP214	P214		UC214	62.2	44.1	14.5	6.8	8.7
95	360	90	280	27	40	35	186	110	78	33	M22	UCP314	P314		UC314	104	68.2	13.2	12.4	14.7
82.6	275	74	217	25	30	28	162	78	77.8	33.3	M20	UCP215	P215		UC215	67.4	48.3	14.5	7.4	9.3
100	380	100	290	27	40	35	198	107	82	32	M22	UCP315	P315		UC315	113	77.2	13.2	14.8	17.3
88.9	292	78	232	25	35	30	174	83	82.6	33.3	M20	UCP216	P216		UC216	72.7	53.0	14.6	9.0	11.4
106	400	110	300	27	40	35	209	120	86	34	M22	UCP316	P316		UC316	123	86.7	13.3	18.5	21.4
95.2	310	83	247	25	40	32	185	87	85.7	34.1	M20	UCP217	P217		UC217	84.0	61.9	14.5	10.8	13.5
112	420	110	320	33	45	40	220	120	96	40	M27	UCP317	P317		UC317	133	96.8	13.3	20.3	23.6
101.6	327	88	262	27	45	33	198	94	96	39.7	M22	UCP218	P218		UC218	96.1	71.5	14.5	13.9	17.0
118	430	110	330	33	45	40	234	120	96	40	M27	UCP318	P318		UC318	143	107	13.3	22.8	26.6
125	470	120	360	36	50	46	248	125	103	41	M30	UCP319	P319		UC319	153	119	13.3	29.0	33.3
140	490	120	380	36	50	46	273	140	108	42	M30	UCP320	P320		UC320	173	141	13.2	35.1	40.7
140	490	120	380	36	50	46	278	140	112	44	M30	UCP321	P321		UC321	184	153	13.2	37.6	43.6
150	520	140	400	40	55	50	296	150	117	46	M33	UCP322	P322		UC322	205	180	13.2	44.0	50.8
160	570	140	450	40	55	50	316	160	126	51	M33	UCP324	P324		UC324	207	185	13.5	55.4	64.9
180	600	140	480	40	55	50	355	195	135	54	M33	UCP326	P326		UC326	229	214	13.6	72.1	84.2
200	620	140	500	40	55	60	393	185	145	59	M33	UCP328	P328		UC328	253	246	13.6	92.5	108
36.5	140	38	105	13	18	16	70	38	35		M10	UKP205	P205	H2305X	UK205	14.0	7.85	13.9	0.84	1.3
45	175	45	132	17	20	16	85	55	35		M14	UKP305	P305	H2305X	UK305	21.2	10.9	12.6	1.7	2.3
42.9	165	48	121	17	21	17	84	48	38		M14	UKP206	P206	H2306X	UK206	19.5	11.3	13.9	1.4	1.9
50	180	50	140	17	20	17	95	53	38		M14	UKP306	P306	H2306X	UK306	26.7	15.0	13.3	2.3	2.9
47.6	167	48	127	17	21	18	95	47	43		M14	UKP207	P207	H2307X	UK207	25.7	15.4	13.9	1.7	2.5
56	210	56	160	17	25	19	107	65	43		M14	UKP307	P307	H2307X	UK307	33.4	19.3	13.2	3.0	3.9
49.2	184	54	137	17	21	18	98	53	46		M14	UKP208	P208	H2308X	UK208	29.1	17.8	14.0	2.0	2.9
60	220	60	170	17	27	19	118	65	46		M14	UKP308	P308	H2308X	UK308	40.7	24.0	13.2	3.8	5.2
54	190	54	146	17	21	20	106	55	50		M14	UKP209	P209	H2309X	UK209	34.1	21.3	14.0	2.3	3.2
67	245	67	190	20	30	21	132	75	50		M16	UKP309	P309	H2309X	UK309	48.9	29.5	13.3	5.0	6.3
57.2	206	60	159	20	22	21	113	60	55		M16	UKP210	P210	H2310X	UK210	35.1	23.3	14.4	3.0	4.1
75	275	75	212	20	35	24	148	88	55		M16	UKP310	P310	H2310X	UK310	62.0	38.3	13.2	6.7	8.4
63.5	219	60	171	20	22	23	125	65	59		M16	UKP211	P211	H2311X	UK211	43.4	29.4	14.4	3.7	5.0
80	310	80	236	20	38	27	158	90	59		M16	UKP311	P311	H2311X	UK311	71.6	45.0	13.2	8.1	10.0
69.8	241	70	184	20	25	25	138	73	62		M16	UKP212	P212	H2312X	UK212	52.4	36.2	14.4	4.8	6.3
85	330	85	250	25	38	29	167	103	62		M20	UKP312	P312	H2312X	UK312	81.9	52.2	13.2	9.4	11.8
76.2	265	70	203	25	30	27	150	78	65		M20	UKP213	P213	H2313X	UK213	57.2	40.1	14.4	5.8	7.5
90	340	90	260	25	38	32	176	110	65		M20	UKP313	P313	H2313X	UK313	92.7	59.9	13.2	10.8	13.2
82.6	275	74	217	25	30	28	162	78	73		M20	UKP215	P215	H2315X	UK215	67.4	48.3	14.5	7.5	9.5
100	380	100	290	27	40	35	198	107	73		M22	UKP315	P315	H2315X	UK315	113	77.2	13.2	14.9	17.7
88.9	292	78	232	25	35	30	174	83	78		M20	UKP216	P216	H2316X	UK216	72.7	53.0	14.6	9.2	11.7
106	400	110	300	27	40	35	209	120	78		M22	UKP316	P316	H2316X	UK316	123	86.7	13.3	18.6	21.7
95.2	310	83	247	25	40	32	185	87	82		M20	UKP217	P217	H2317X	UK217	84.0	61.9	14.5	11.0	13.8
112	420	110	320	33	45	40	220	120	82		M27	UKP317	P317	H2317X	UK317	133	96.8	13.3	20.2	23.7
101.6	327	88	262	27	45	33	198	94	86		M22	UKP218	P218	H2318X	UK218	96.1	71.5	14.5	13.8	18.8
118	430	110	330	33	45	40	234	120	86		M27	UKP318	P318	H2318X	UK318	143	107	13.3	22.8	27.0
125	470	120	360	36	50	46	248	125	90		M30	UKP319	P319	H2319X	UK319	153	119	13.3	29.3	34.0
140	490	120	380	36	50	46	273	140	97		M30	UKP320	P320	H2320X	UK320	173	141	13.2	34.8	41.0
150	520	140	400	40	55	50	296	150	105		M33	UKP322	P322	H2322X	UK322	205	180	13.2	43.9	50.8
160	570	140	450	40	55	50	316	160	112		M33	UKP324	P324	H2324X	UK324	207	185	13.5	55.7	66.0
180	600	140	480	40	55	50	355	195	121		M33	UKP326	P326	H2326X	UK326	229	214	13.6	71.9	85.2
200	620	140	500	40	55	60	393	185	131		M33	UKP328	P328	H2328X	UK328	253	246	13.6	92.5	109
