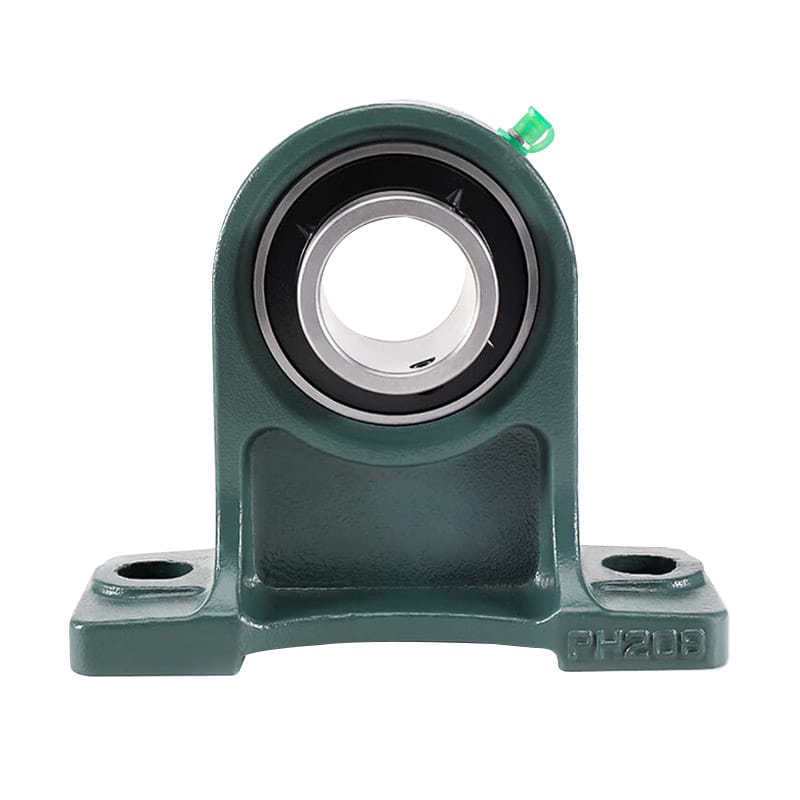

UCPH, UELPH, UKPH+H Series

Built on precision manufacturing and strict quality control, we deliver reliable, stable, and high-performance bearing solutions to customers worldwide.

UCPH, UELPH, UKPH+H Series

Compared to ordinary upright stands, this type has a higher center height, making it suitable for machinery with specific installation height requirements and meeting particular spatial layout needs.

UCPH, UELPH, UKPH+H Series

Compared to ordinary upright stands, this type has a higher center height, making it suitable for machinery with specific installation height requirements and meeting particular spatial layout needs.

Description

Shaft dimensions (mm)	Dimensions (m)											Nominal designation of mounting bolts	Nominal code of the component	Applicable to: bearing housings	Bearing Nominal Code	Applicable bearing basic rated load (kN)		Coefficient	(Reference) Component weight (kg)
d	H ±0.15	L	A	J	N	Ni	Hi	H₂	L1	B	S	Nominal designation of mounting bolts	Nominal code of the component	Applicable to: bearing housings	Bearing Nominal Code	C:	Cor	f	(Reference) Component weight (kg)
12	70	127	40	95	13	19	15	101	46	31	12.7	M10	UCPH201	PH204	UC201	12.8	6.65	13.2	0.96
15	70	127	40	95	13	19	15	101	46	31	12.7	M10	UCPH202	PH204	UC202	12.8	6.65	13.2	0.94
17	70	127	40	95	13	19	15	101	46	31	12.7	M10	UCPH203	PH204	UC203	12.8	6.65	13.2	0.93
20	70	127	40	95	13	19	15	101	46	31	12.7	M10	UCPH204	PH204	UC204	12.8	6.65	13.2	0.91
25	80	140	50	105	13	19	16	114	49	34.1	14.3	M10	UCPH205	PH205	UC205	14.0	7.85	13.9	1.2
30	90	165	50	121	17	21	18	130	56	38.1	15.9	M14	UCPH206	PH206	UC206	19.5	11.3	13.9	1.6
35	95	167	60	127	17	21	18	140	54	42.9	17.5	M14	UCPH207	PH207	UC207	25.7	15.4	13.9	2.0
40	100	184	70	137	17	21	20	150	57	49.2	19	M14	UCPH208	PH208	UC208	29.1	17.8	14.0	2.7
45	105	190	70	146	17	21	20	158	58	49.2	19	M14	UCPH209	PH209	UC209	34.1	21.3	14.0	3.0
50	110	206	70	159	20	22	22	165	65	51.6	19	M16	UCPH210	PH210	UC210	35.1	23.3	14.4	3.5
